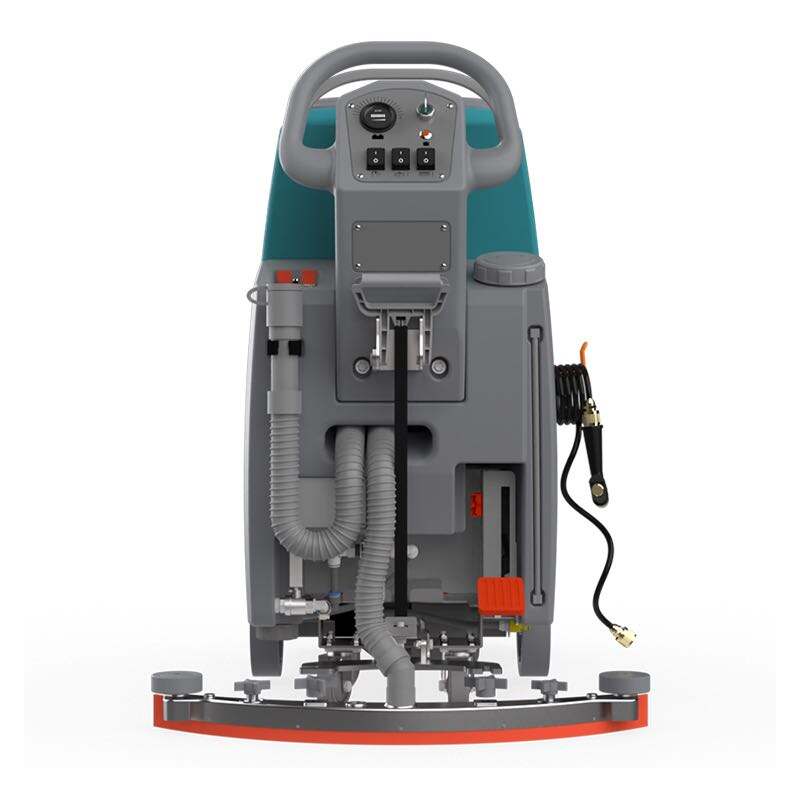

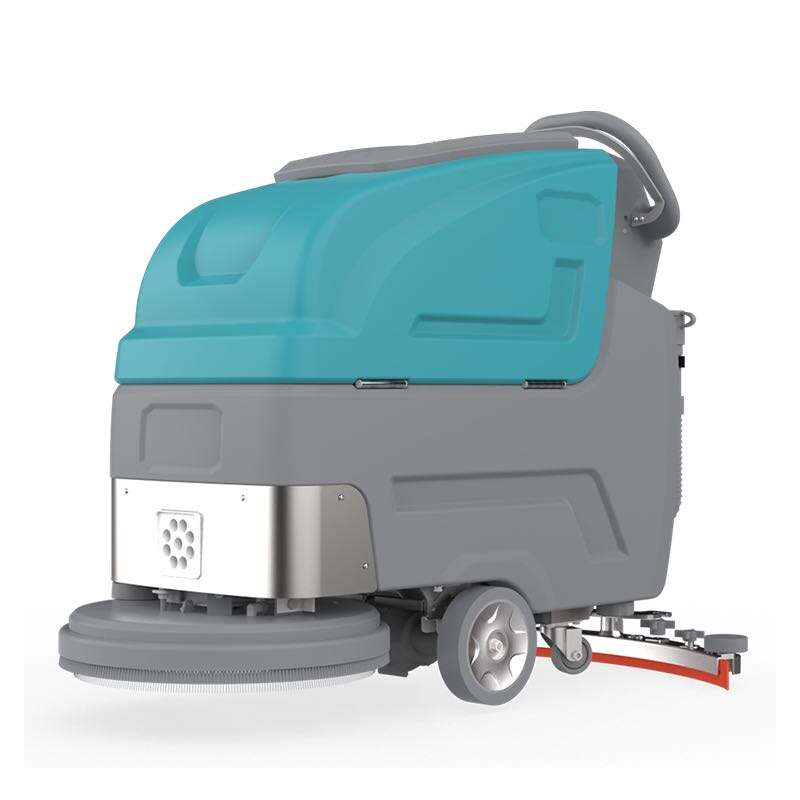

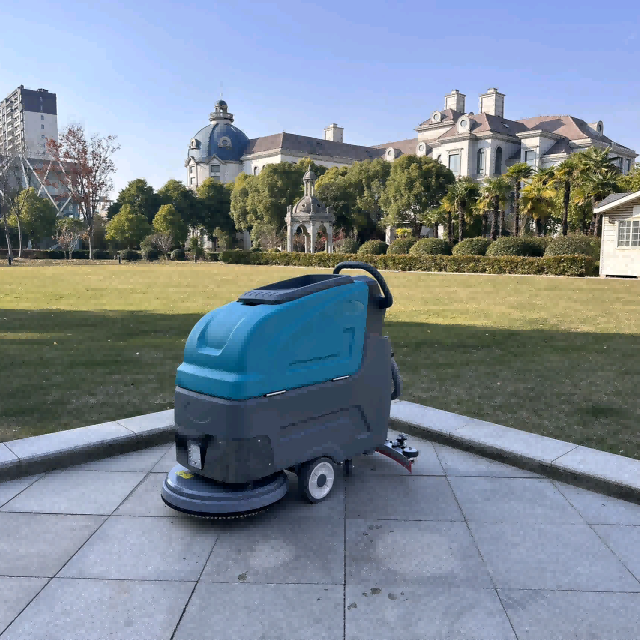

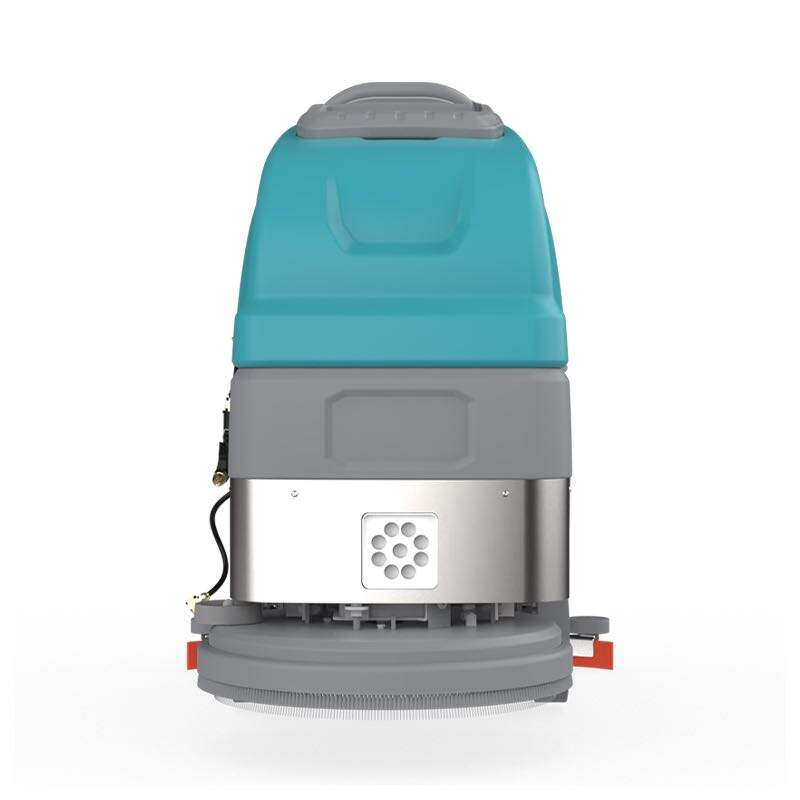

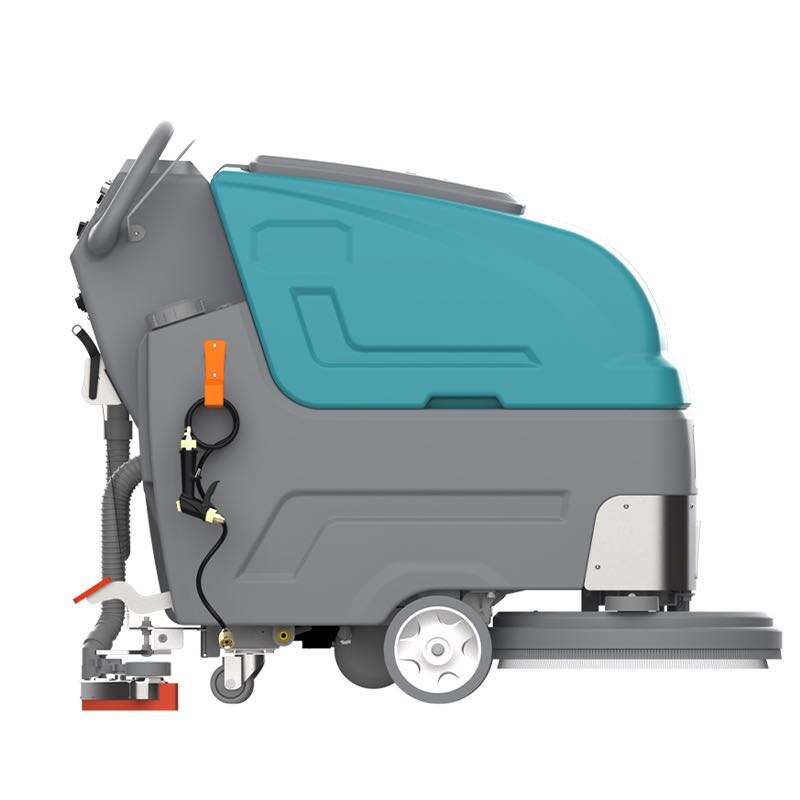

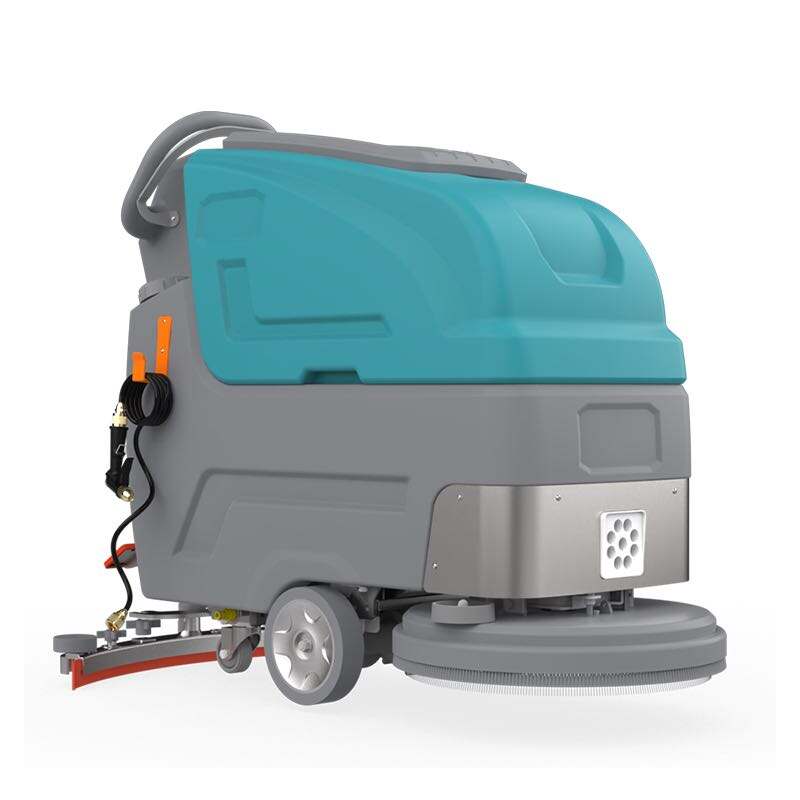

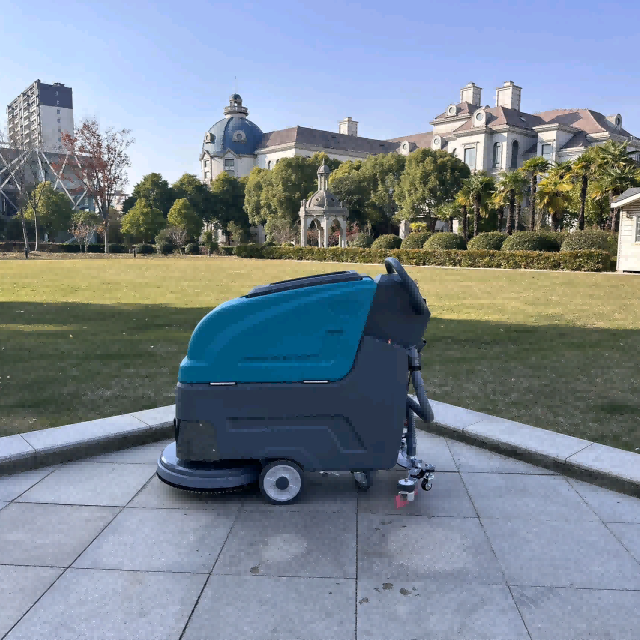

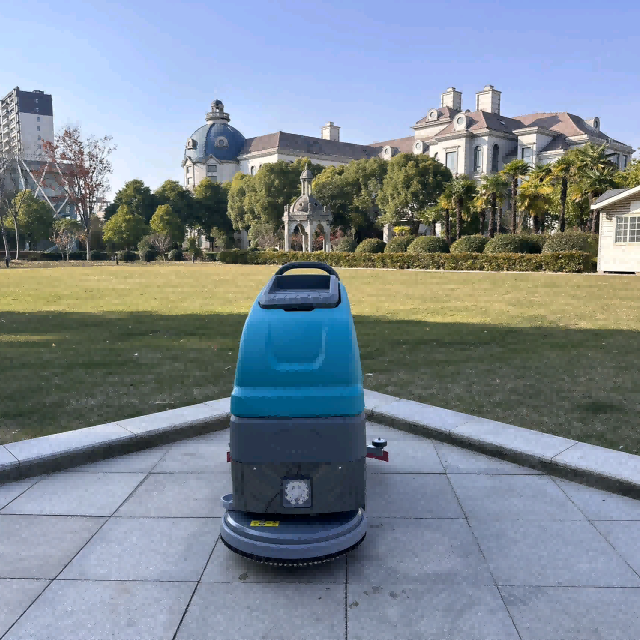

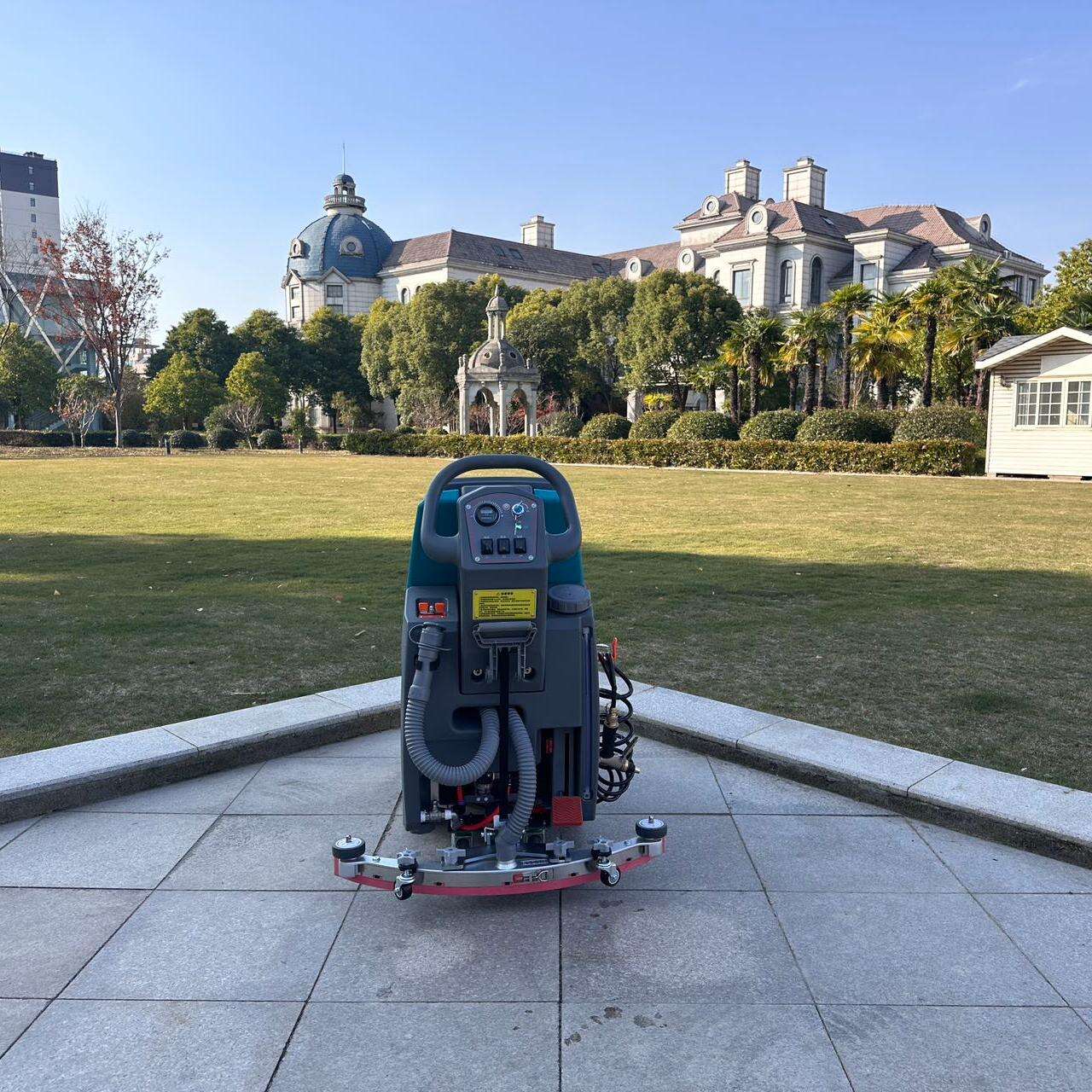

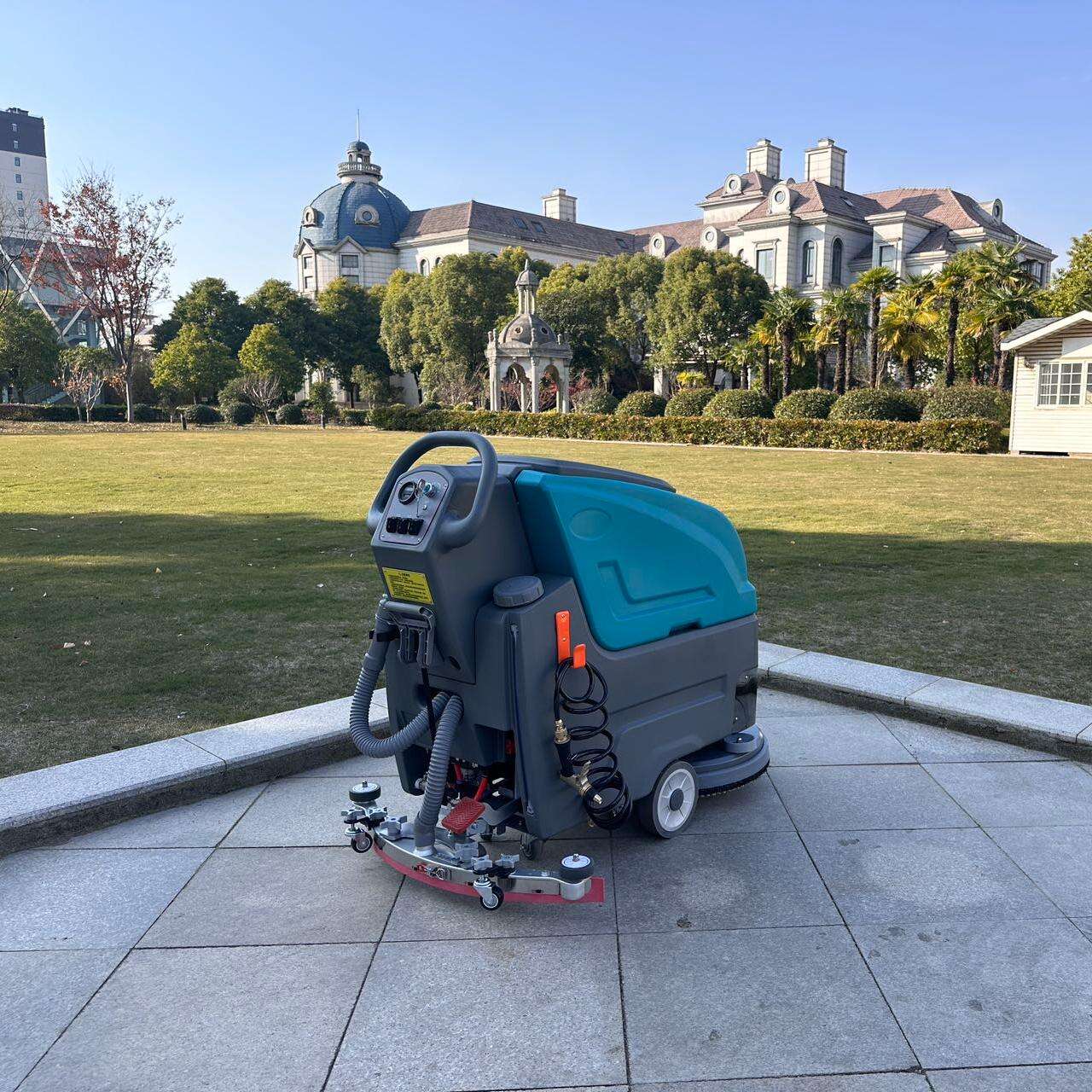

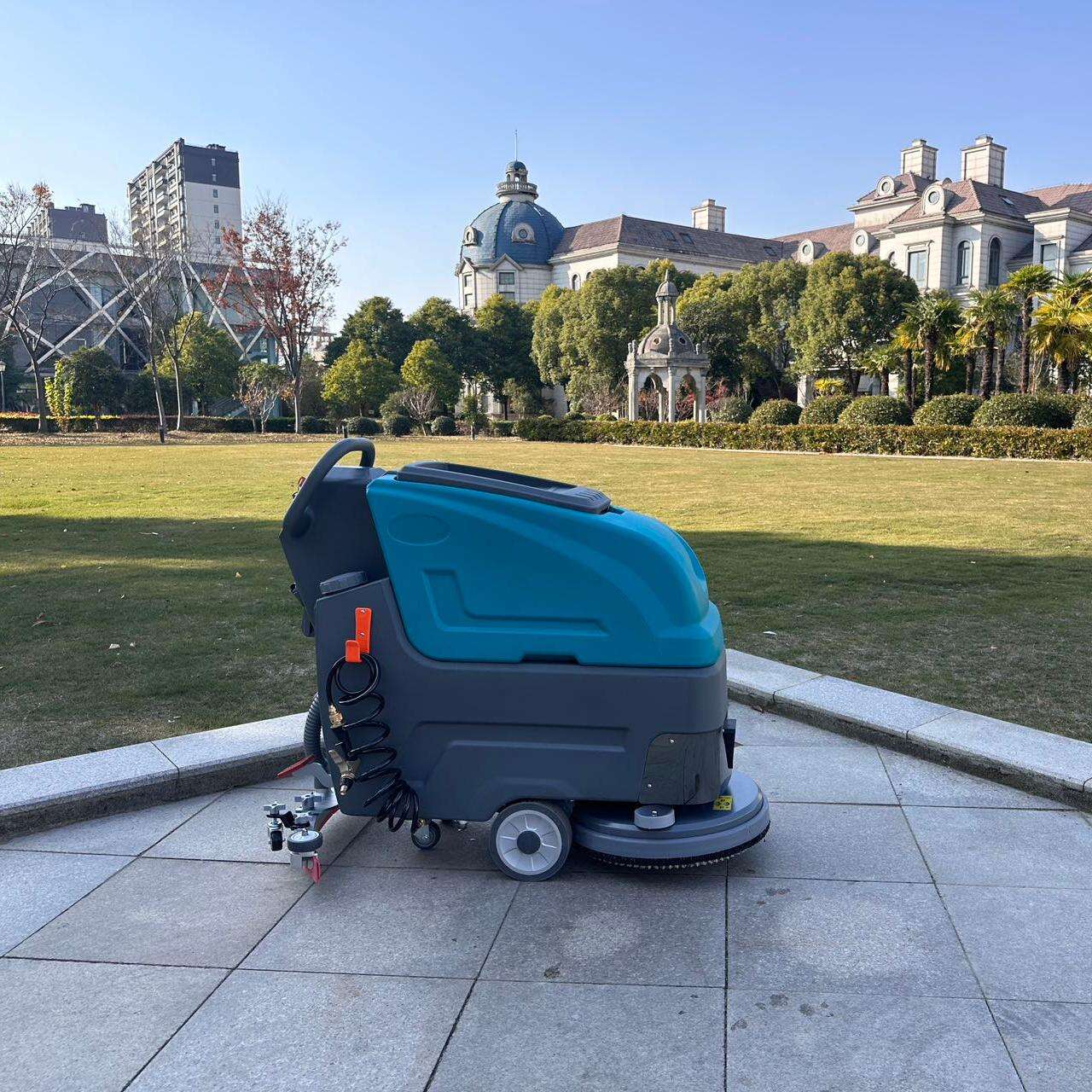

Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5
Walk Behind Floor Scrubber YF-X5

Walk Behind Floor Scrubber YF-X5

Introduction

Parameters

Item

Unit

Parameter

Model



YF-X5

Cleaning Width

mm

520

Squeegee

mm

830

Brush Diameter

mm

500

Capacity

m2/h

2600

Water Tank

L

65

Sewage Tank

L

75

Working Time

h

3-4

Power

V/AH

24/100

Brush Motor

w

550

Vacuum Motor

w

500

Water Pump

w

120

Weight

kg

135

Dimension

mm

1300*830*1010

Packing Size

mm

1360*660*1220

Characteristics

1. Chassis Double-Layer Anti-Rust Primer: Electrostatic powder coating with secondary surface painting, anti-rust and anti-peeling. The coating process includes degreasing, grinding, applying putty, epoxy zinc-rich primer (with 40% zinc content), and plastic spraying (electrostatic powder coating). The final coating is hard and durable.

2. Vehicle Wiring Control: Designed by the Tongji Automotive Research Institute, using national standard wires, waterproof plugs, flame-retardant wire tubes, and well-known electrical components. Wires are stripped by a wire stripping machine. The vehicle wiring control is designed and manufactured according to passenger vehicle standards.

3. Standard High-Pressure Water Gun: Easier to clean with a high-pressure water gun.

4. Water Tank Material: Made of imported PE (modified material), produced with rotational molding technology, more environmentally friendly and resistant to fading outdoors.

5. Ergonomic Design: Features an ergonomic handle, silicone waterproof skirt, and 304 stainless steel fastening screws throughout the vehicle.

6. Foot Pedal Lifting Brush and Suction Pad: Frees your hands, allowing you to control water flow without bending over.
